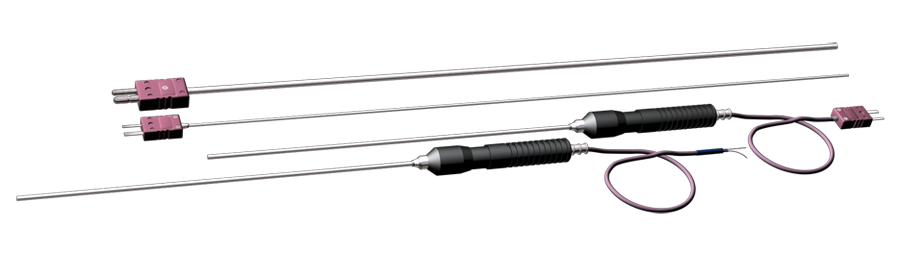

3-category reference cable thermocouples CRTNN

These reference thermocouples are designed for calibration of CTK, CTN, CTL, CTJ thermocouples, modifications 21.X, equipped with additional channel for reference sensor. Calibration is carried out directly at site (without thermocouple dismantling) in compliance with procedure MI No. 3091-2007, within temperature range from +200°C to +1100°C.
Thermocouple is made of nichrosil-nisil thermocouple cable. Cable performance specification correspond to IEC 61515, IEC 60584-1.
Thermocouple hot junction is located inside cable at tip end, which is blocked with metal plug. Another thermocouple end is equipped with extension wire and/or thermocouple connector for metering circuit connection: CRTNN 01 modification - with connector; CRTNN 02 - with extension wire.
Thermocouples with cable part diameter equal to 2 mm use miniature connectors, thermocouples with diameter equal to 3, 4, 5 mm - use standard connectors.
Thermocouple connectors comply with ASTM E1684 and ASTM E1129 standards. CRTNN thermocouple with connector can be equipped with ATNN adapter (see section 11) to make measuring line longer.
It is recommended to use portable double-channel measuring instrument HH506RA.as a calibrating instrument. Expanded uncertainty of the instrument does not exceed
±(0,05% (of measured value)+0,4)°С; measurement results can be automatically recorded to the instrument memory.
For calibration CRTNN is inserted into additional channel of calibrated thermocouple so that CRTNN working end is butt against bottom of thermowell of calibrated thermocouple. Then values of CRTNN and running thermocouple are compared.
Calibration procedure (MI 3091-2007) is supplied to the end user for free. CRTNN thermocouples are not subject to periodic calibration.
CRTNN guarantee period under nominal operating temperature:
500 measurements for CRTNN 3 and 4.5 mm diameter;
300 measurements for CRTNN 2 mm diameter.
Probability of faultless operation within guarantee period is 0.90.
CRTNN thermocouple design is covered by utility model patent No. 39200. Calibration procedure is covered by patent for invention No. 2325622 dated March 22, 2007.

View full

Technical characteristics

Technical specifications

Operating temperature range

from +200°С to +1100°С

Tolerance class

3-category reference thermocouple

Protection rate
according to GOST 14254-96 (IEC 60529)

– IР40 for versions with connector;
– IР65 for other versions.

Maximum temperature of
the handle and connector

+60°С

CRTNN expanded uncertainty values under confidence coefficient 0,95;

200°	300°	400°	500°	600°	700°	800°	900°	1000°	1100°
0.85	0.90	0.95	1.0	1.05	1.15	1.2	1.3	1.35	1.5

Execution options

Length L should be chosen according to maximum length of thermocouples being calibrated.
Extension lead length lshould be selected within the range: 500, 1000, 2000, 5000 mm.

Thermocouple type	Design modification		Diameter d, mm	Reference thermocouple length, L, mm
	modification	modification version		min	max
CRTNN	01	-200	2,0; 3.0	630	3150
		-400	3,0; 4,5
	02	-050, -051, -060, -250, -251, -260	2,0; 3,0
		-050, -051, -060, -450, -451, -460	3,0; 4,5

Examples of product designation

*CRTNN*		02	¾	2	50	¾	3	¾	*630*	/	*500*
1		2		3	4		5		6		7

Field no.	Structure	Field code	Designation
1	abbreviation	*CRTNN*	Reference nichrosil-nisil cable thermocouple
2	Modification	01	with male connector, without extension wires
2	Modification	02	With handle and extension wire for secondary instrument connection, with or without male connector.
3	Terminal head	0	Without connector
		2	miniature plug
		4	standard plug
4	Extension wire type	00	Without extension wires (for 01 modification)
		50	silicon rubber double insulated lead
		51	silicon rubber double insulated lead, with internal tinned copper wire screen
		60	PTFE double insulated lead, with internal tinned copper wire screen
5	Working end diameter	*2; 3; 4.5*	dimensions in mm
6	Calibrated thermocouple length L*	*630¾3150*	dimensions in mm
7	Extension wire length l	*500-5000*	size (mm) on Customer's choice
Notes. Extension wire description is given in "Enclosures" section. * Reference thermocouple working length will be 300 mm larger than indicated L length, and will be rounded out to the nearest standard value from linear dimension range according to GOST 6636-90.
*CRTNN 02-–250 – 3 – 630/500¾ reference calibrated cable thermocouple, nichrosil-nisil (NN) modification 02 with miniature plug (2), extension wires with double silicon insulation (50), diameter 3 mm, calibrated thermocouple installation length 630* mm; extension wire length *500* mm. *CRTNN 02-–051 – 2 – 1000/2500¾ reference calibrated cable thermocouple, nichrosil-nisil (NN) modification 02 with free ends (0), extension wire with double silicon insulation and inner tinned copper wire screen (51), diameter 2 mm, calibrated thermocouple installation length 1000* mm; extension wire length *2500* mm. *CRTNN 01-–400 – 4.5 – 400/1000¾ reference calibrated cable thermocouple, nichrosil-nisil (NN) modification 01 with standard plug (4), without extension wires (00), diameter 4.5* mm, calibrated thermocouple installation length *400* mm; extension wire length *1000* mm.
