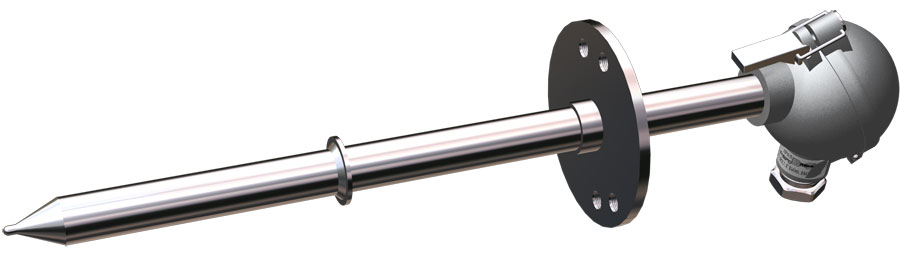

is designed for temperature measurement in rubber mixer chamber.
Flange dimensions and probe length can be modificed in compliance with the Customer's requirements specification.
Sensors can be of explosion protection type 0ExiaIICT6 X or 1ExdIICT6 according to GOST 30852.10-2002. For further details see "Alternative designs & Ordering information" below.
Terminal heads can be equipped with transmitters with 4-20 mА DC output signal and/or digital signal via HART, PROFIBUS-PA, FOUNDATION Fieldbus protocol. It is recommended to use heads of 16, 23, 28 modifications for easy wire connection to transmitters. Terminal head can be equipped with standard or special-purpose cable gland. For further details see "Alternative designs & Ordering information" below.
|
Hot junction |
one |
Ungrounded or Grounded |
||
|
Vibration resistance GOST R 52931 |
group N2 |
|||
|
Seismic resistance MSK-64 |
grade 9 for unit installation up to 70 m above zero mark |
|||
|
Climatic category GOST 15150 |
UHL2Ambient temperature: |
-60..+120ºС for general purpose products |
||
|
-60..+85 ºС for Ex version with analogous signal |
||||
|
-55..+85ºС for products with unified output signal |
||||
|
Calibration |
- MI 3090-2007 – for sensor fitting length 20 - 250 mm, without measuring transmitters; |
|||
|
Response time τ 0,63 |
10 seconds |
|||
Group of operating conditions |
Probability of |
Specified lifetime |
Mean |
Guarantee |
|
II |
0.95 for 16 000 hours |
2 years |
4 years |
2 years |
Measurement accuracy of sensors with 4-20 mА DC signal and/or digital signal via HART protocol are given taking into account accuracies of thermocouple itself, transmitter and transmitter's cold junction compensation.
Output signal |
Symbol |
Measurement accuracy |
Output signal |
Symbol |
Measurement accuracy |
|
4-20mА |
Т40 |
±0,4% ∙ tn* or ±1,5°С |
4-20mА+HART |
H25 |
±0,25%∙ tn or ±0,9°С; |
|
Т50 |
±0,5%∙ tn or ±2,0°С |
H40 |
±0,4%∙ tn or ±1,2°С; |
||
|
Т70 |
±0,7%∙ tn or ±2,5°С; |
H50 |
±0,5%∙ tn or ±1,7°С; |
||
|
Т80 |
±0,8%∙ tn or ±2,5°С; |
H80 |
±0,8%∙ tn or ±2,5°С; |
||
|
Т100 |
±1%∙ tn or ±2,5°С |
|
|
|
* - tn measuring transmitter adjustment range should be multiplied by specified value in %. Select higher value.
Тип КТ |
Диаметр чехла |
Материал чехла |
Группа условий эксплуатации |
Температура |
Интервал между |
Средний срок |
|
КТХК |
20 |
С10 |
II |
-40…+200 |
2 года |
4 года |
|
CTK |
|
|
01.17 |
— |
0 |
20 |
— |
c1 |
|
— |
U |
|
— |
S10 |
— |
20 |
— |
L |
/ |
l |
— |
|
|
1 |
|
2 |
3 |
|
4 |
5 |
|
6 |
7 |
|
8 |
9 |
|
10 |
|
11 |
|
12 |
|
13 |
|
14 |
|
NN |
Name |
Code |
Description |
||
|
1 |
Sensor type |
CTK, CTL, CTN |
Mineral insulated cable thermocouple with type according to IEC 60584 and ASTM E230 |
||
|
2 |
Explosion protection |
Not filled |
general purpose electrical equipment |
||
|
Exi |
0ExiaIICT6 X, intrinsically safe circuit |
||||
|
Exd |
1ExdIICT6, explosion-proof enclosure |
||||
|
3 |
Modification |
01.17 |
|
||
|
4 |
Cable gland |
0 |
standard cable gland of terminal head |
||
|
А-Z |
Special cable gland (see table 3 page 1-13) |
||||
|
5 |
Sensor terminal |
15; 16 |
aluminium head |
IP66/IP68 |
1ExdIICT6 / 0ExiaIICT6 X |
|
20; 22 |
aluminium head |
IP65 |
general purpose |
||
|
21; 23; 24; 25; 26; 28; 29 |
aluminium head |
IP66 |
0ExiaIICT6 Х or general purpose |
||
|
6 |
Sensor class designation |
c1; c2 |
For further details see table 5 page 2-9 |
||
|
7 |
Output signal, transmitter accuracy symbol, see table 5, page 2-10 |
Not filled |
analogous signal (mV) according to NSC |
||
|
Т40 |
4-20 mА |
for k0 |
|||
|
Т50; Т70 |
for k1 |
||||
|
Т80; Т100 |
for k2 |
||||
|
H40 |
4-20 mА +HART |
for k0 |
|||
|
Н25; Н50 |
for k1 |
||||
|
H80 |
for k2 |
||||
|
8 |
Sensor hot junction design |
G |
grounded junction, general purpose |
||
|
U |
ungrounded junction |
||||
|
9 |
Number of wire couples |
Not filled |
1 wire couple |
||
|
10 |
Safety fitting |
S10 |
steel 12Cr18Ni10T |
||
|
11 |
Outer diameter |
20; |
size (mm) on Customer's choice |
||
|
12 |
Probe length |
100÷500 |
probe length L to the working end, mm |
||
|
13 |
Extension neck length l |
Not filled |
if equals to 80 mm |
||
|
30÷500 |
specify dimension in mm, if 80 mm doesn't fit |
||||
|
14 |
Additional |
|
To be completed if necessary, for flange identification for example |
||
|
|
CTL 01.17-020 - c2 - Н - S10 - 20 - 250 |
||
|
Product type |
CT |
cable thermocouple |
|
|
Type of TC |
K |
chromel-copel |
|
|
Explosion protection |
- |
general purpose |
|
|
Modification |
01.17 |
|
|
|
Cable gland |
0 |
standard |
|
|
Wring (terminal head code) |
20 |
with latch, IP65 |
|
|
Tolerance class |
c1 |
second class |
|
|
Output signal |
― |
analogous |
|
|
Junction type |
U |
grounded |
|
|
Sheath material |
S10 |
steel 12Cr18Ni10T |
|
|
Working end diameter |
20 |
mm |
|
|
Probe length |
250 |
mm |
|
|
Extension neck length |
― |
80 mm |
|
