304

  • 002
  • 004
  • 050
  • 080

304

These sensors are designed for measurement of solid surface temperature, liquid and gaseous non-corrosive media temperature, and also temperature of corrosive media that do not damage thermowell material.
Sensors can be of explosion protection type 0ExiaIICT6 X  according to GOST 30852.10-2002. For further details see "Alternative designs & Ordering information" below.

If required thermocouples with 4-20 mА DC signal and/or digital signal via HART, PROFIBUS-PA, FOUNDATION Fieldbus protocol can be equipped with remote transmitters .
Technical characteristics

Connection diagram

3-wire

класс допуска А, В, С

4-wire

Vibration resistance GOST R 52931

group V3

Seismic resistance MSK-64

grade 9 for unit installation up to 70 m above zero mark

Climatic category GOST 15150

UHL2Ambient temperature:

-60..+120ºС for general purpose products

-60..+85 ºС for Ex version with analogous signal

Calibration

- GOST 8. 461-2009

Response time:

does not exceed 25 seconds

Reliability indicators

Group of operating
conditions

Probability of
failure-free operation

Specified lifetime

Mean
lifetime

Guarantee
conditions

I

0.95 for 40 000 hours

5 years

10 years

5 years

II

0.95 for 16 000 hours

2 years

4 years (6 years)*

2 years

* - Increased mean lifetime with 0,6 failure-free operation possibility for the given period.

Temperature range

TC type

Thermowell diameter, mm

Thermowell material

Group of
operating
conditions

Tolerance
class

Application
temperature, °С

Cal. int.

Mean lifetime

CRTD

10

S10

II

A

– 50…+120

2 years

4 years

B, C

– 50…+150

2 years

4 years

PRTD

10

S10

I

A, B, С

– 50…+150

5 years

10 years

Execution options

PRTD



Exi

304

0

60

Pt100

В

3

S10

8

L

/

l





1



2

3



4

5



6



7

8



9



10



11



12



13



NN

Name

Code

Description

1

Sensor type

CRTD

Copper resistance temperature detector

PRTD

Platinum resistance temperature detector

2

Explosion protection

Not filled

general purpose electrical equipment

Exi

0ExiaIICT6 X, intrinsically safe circuit

3

Modification

303, 304

see drafts at page

4

Terminal head

0

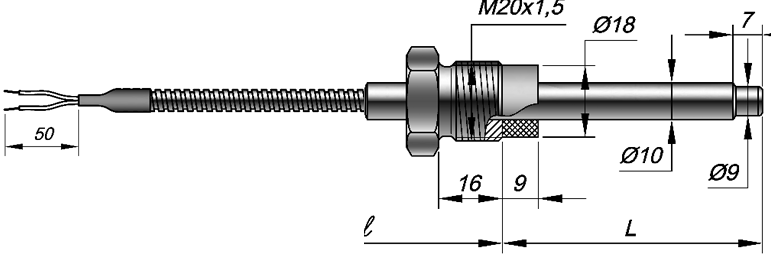

Free electrode ends 50mm

IP65

0ExiaIICT6Х or general purpose

2

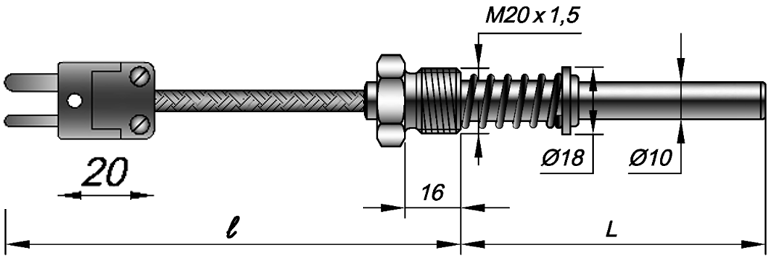

miniature plug

IP40

general purpose

4

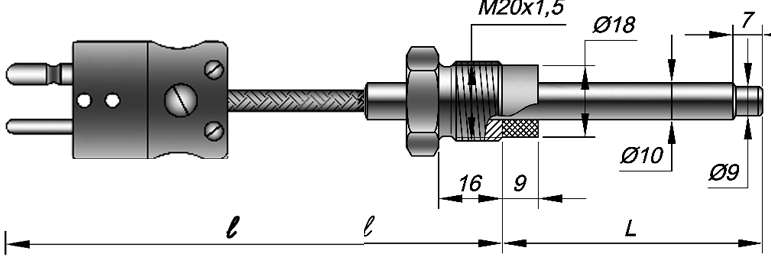

standard plug

IP40

general purpose

5

Sensor terminal
head (see "Alternative
designs"
page 1-15)

50

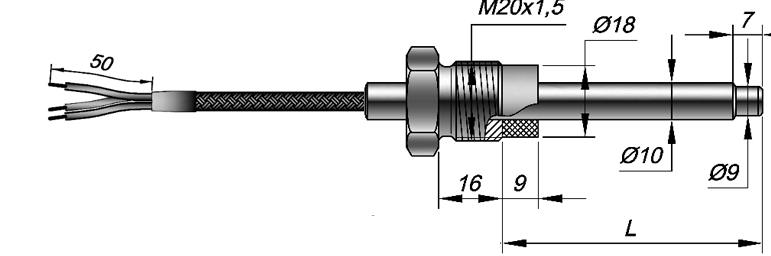

Stranded conductor, silicon / shield / silicon insulation - shield is insulated from sensor body and does not have a terminal

60

Stranded conductor, PTFE / shield / PTFE insulation - shield is insulated from sensor body and does not have a terminal

6

Type of TC

50М, 100М, 50P, 100P, Pt100, Pt500, Pt1000

NSC according to GOST 6651-2009

7

Tolerance class

А, В, С

Tolerance class according to GOST 6651-2009

8

Connection diagram

3, 4

3- and 4-wire connection diagram

9

Sheath material

S10

steel 12Cr18Ni10T

10

Outer diameter, mm

10

Sensor diameter 10 mm with working end thinning up to 9 mm

11

Probe length, L, mm

60÷500

specify dimensions in mm

12

Extension wire length

100÷30,000

specify dimensions in mm 500, 1000, 2000 3150 and more

13

Fitting standard size

Not filled

Fitting M20x1,5 unless otherwise stated

G1/2

Required fitting thread should be specified
